Configure Job to Use the Remote Storage

The following article presents how to configure Job to use the remote Storage Daemon.

  1. Navigate to http://xxx.xxx.xxx.xxx:9180/cgi-bin/bweb/bweb.pl (xxx.xxx.xxx.xxx is the remote Storage server IP address).

  2. Click “Configuration” -> “Director” -> “Jobs”.

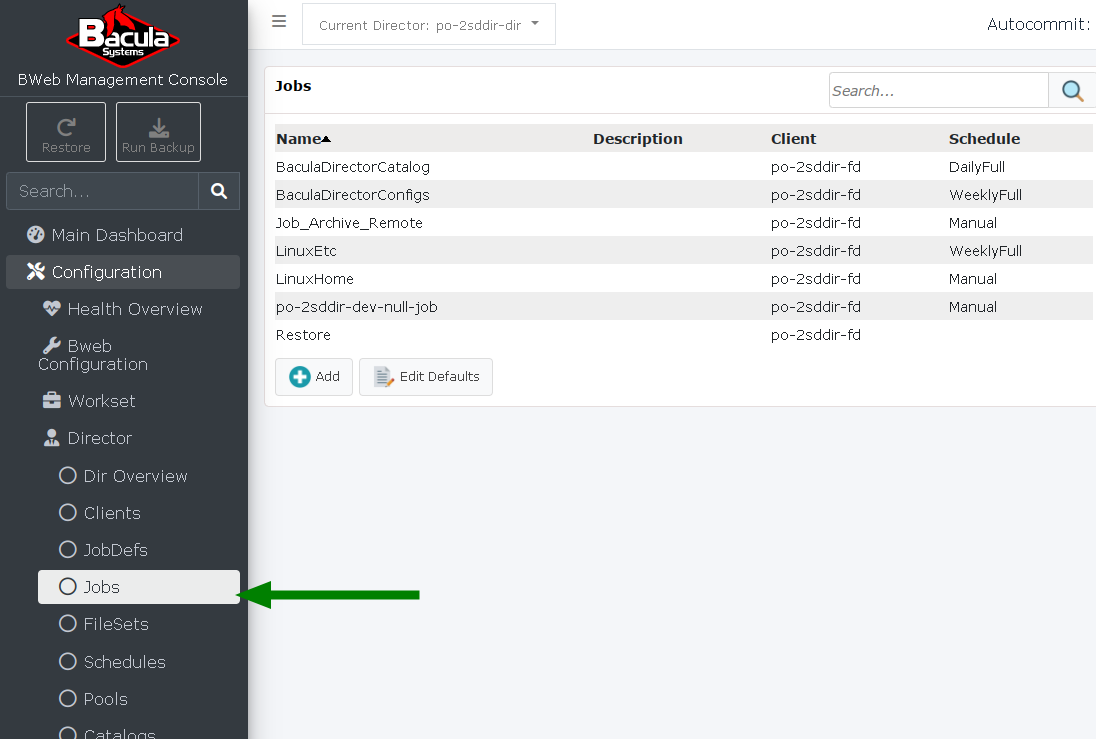

../../../../../_images/JobSDImage01.png

  1. Click “Add”.

  2. In the Job Name field, type: “Job_Archive_Remote”.

  3. Expand the Fileset field and choose “LinuxHome”.

  4. Expand the Client field and choose “po-2sddir-fd”.

  5. Expand the Job Defs field and choose “RemoteStorage”.

  6. Click “Add”.

../../../../../_images/JobSDImage02.png

  1. Click the bell.

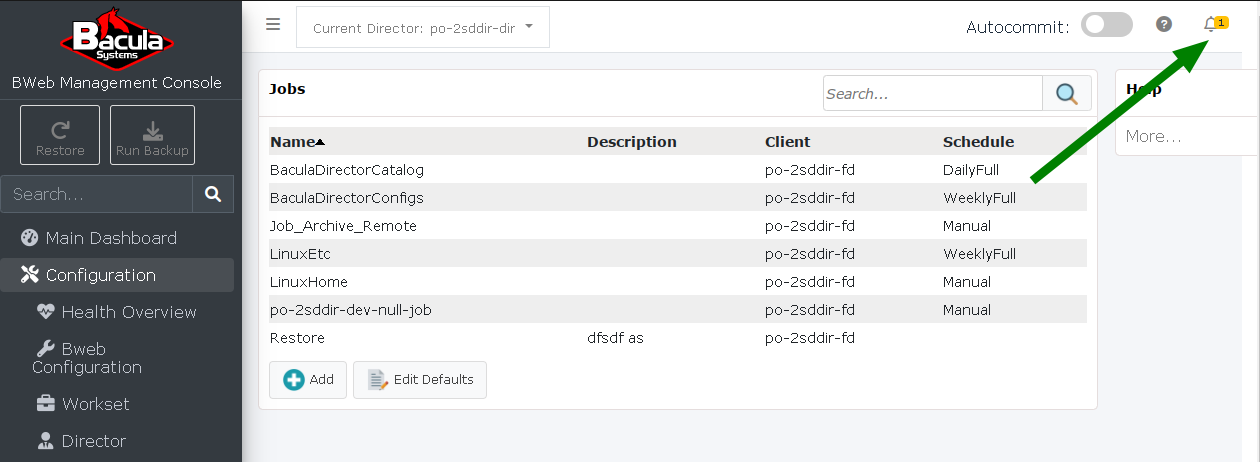

../../../../../_images/JobSDImage03.png

  1. Click “Commit & Reload”.

See also

Previous articles:

Next articles:

Go back to: Configure Pool and Job to Use the Remote Storage.
